Welcome to Richard's web page,
Solo and Follow, Monument Valley in Utah, 2012 vacation.

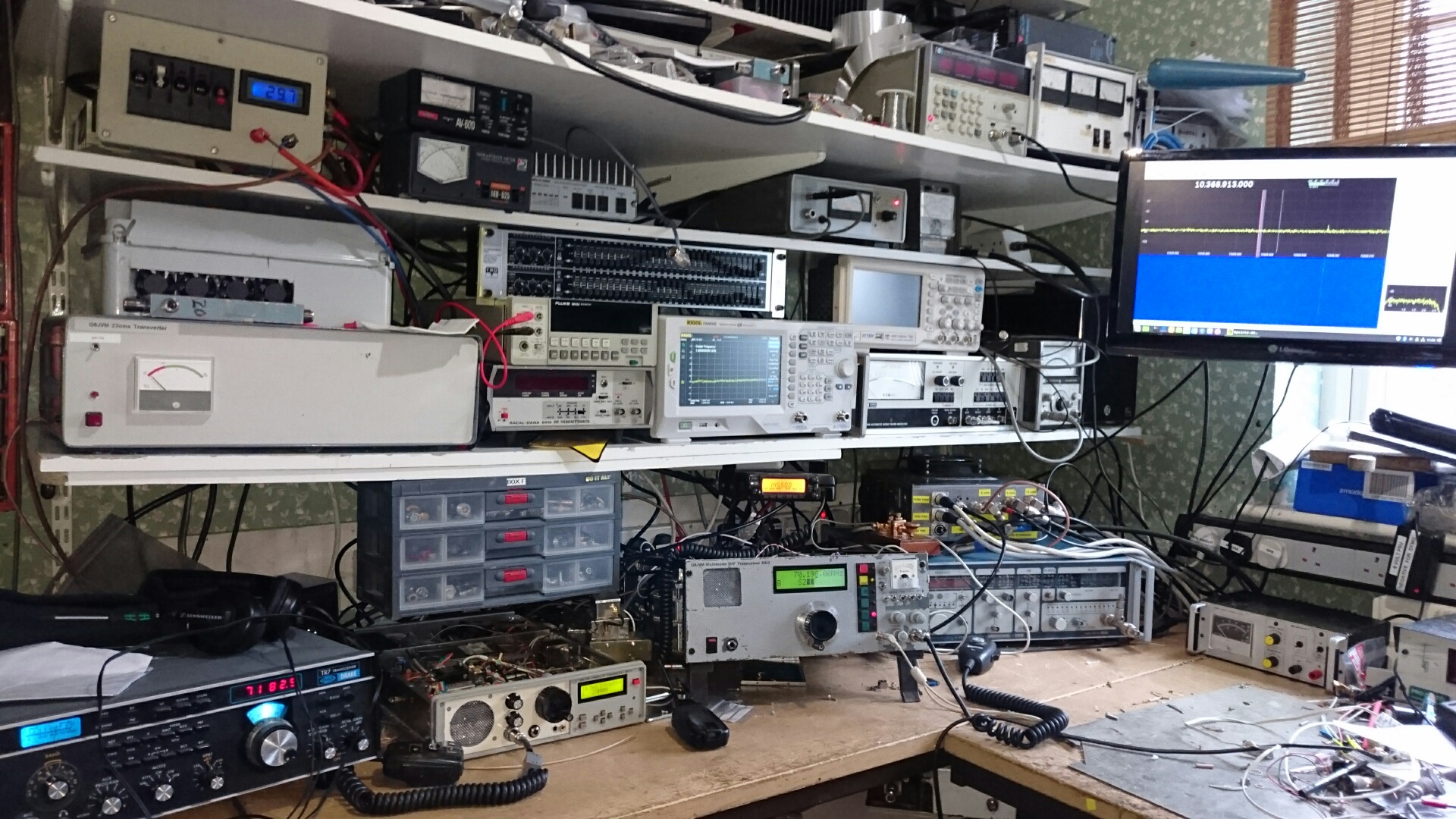

And now for something completely different "The Shack", not a lot of space.
This was taken in February 2020,
To see my current projects click here .
To see my EMC woes with my Solar PV system click here .
To read a bit more about me, family,pets and friends

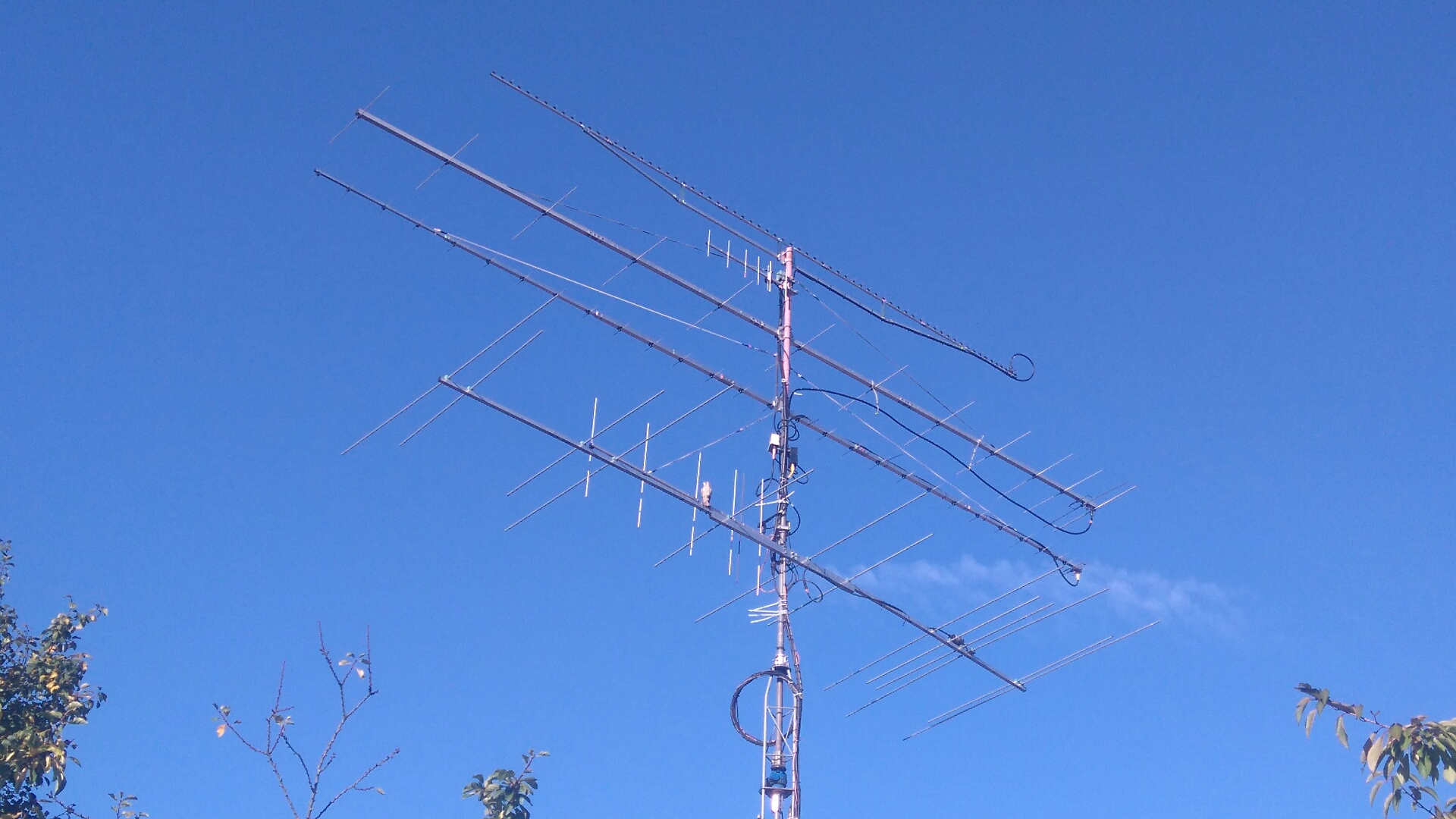

Below are some photos of the antenna system, I can raise, lower and tilt the tower over with the aid of two electric winches
situated at the base of the tower.
The antennas consist of:-
70 ele long yagi for 23 cms PA1296-70-6 from www.antennas-amplifiers.com
31 ele 2.3 GHz antenna 2300-31-1.5RBH from www.antennas-amplifiers.com
17 ele long yagi for 2mtrs PA144-17-8 from www.antennas-amplifiers.com
7 ele Vargarda 432 MHz vertical
30 ele long yagi for 70 cms PA432-30-8 from www.antennas-amplifiers.com
31 ele 1.5 mtr yagi 13cms PA2300-31-1.5 from www.antennas-amplifiers.com
6 ele vertical yagi 145 MHz PA144-6-8 from www.antennas-amplifiers.com
13 ele Dual band 6 & 4 Mtrs designed by YU7EF .
I have a 28dBi grid dish above the 6/4 mtr yagi for 6cms , 5760 MHz .
The photo of the antennas will be updated to show the grid dish and 13cms antenna,
That's when the sun re-appears and a clear blue sky for a background: could be a while , it is England after all !.
I can really recommend the antennas from Goran YU1CF, they are very well made on substantial booms, a very clean polar response , and the gain is good
Contact Goran YU1CF By e-mail
On the chimney is a 60 cms dish with a radom for 3 cms, the transverter is mounted below the dish.
